Introduction to Blocks

Blocks are the fundamental building pieces for creating configurable backend routes. They connect together like LEGO bricks to form complex API workflows through a visual, drag-and-drop interface.

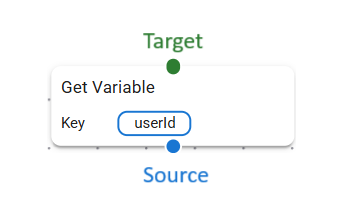

🔗 Block Connections

Each block has connection points that define data flow and execution order:

Connection Type	Color	Purpose
Source	🔵 Blue	Connects to next block and optionally passes input data
Target	🟢 Green	Accepts connection and input data from previous block
Success	🟢 Green	Executes on successful block completion
Error	🔴 Red	Executes when block encounters an error

📦 Block Categories

Blocks are organized into logical categories based on their functionality:

🔰 Core Blocks (Required)

These blocks are essential for every API route:

• Entrypoint: Entry point for all requests
• Response: Final output generation

🔀 Control Flow Blocks

Manage execution flow and decision making:

• If: Conditional branching based on conditions
• For Loop: Traditional for loop with start/end/step
• ForEach Loop: Iterate over arrays or collections

🌐 HTTP Blocks

Handle HTTP request/response operations:

• Get Header: Extract request headers
• Set Header: Set response headers
• Get Cookie: Extract request cookies
• Set Cookie: Set response cookies
• Get Param: Extract route/query parameters
• Get Request Body: Parse request body

📝 Data Processing Blocks

Transform and manipulate data:

• JavaScript Runner: Execute custom JavaScript code
• Transformer: Transform objects using field mapping
• Array Operations: Manipulate arrays (push, pop, slice, etc.)

💾 Variable Management Blocks

Store and retrieve data within request context:

• Set Variable: Store data in request context
• Get Variable: Retrieve data from request context

📊 Logging & Debugging Blocks

Monitor and debug API execution:

• Console Log: Output to console for debugging

🔌 Extension Blocks

Specialized functionality:

• Interceptor: Intercept and modify request/response flow

🏗️ How Blocks Work

Execution Flow

1. Entrypoint Block receives the initial request
2. Data flows through connected blocks in sequence
3. Each block processes input and produces output
4. Response Block generates the final HTTP response

Data Flow

• Blocks receive input from their target connection
• Processing occurs based on block configuration
• Output is sent to the next block via source connection
• Variables can be set/retrieved across the entire flow

Error Handling

• Blocks can have success and error paths
• Failed blocks can continue execution or stop the flow
• Error information is propagated through the error connection

🎨 Creating Custom Blocks

The Configurable Backend Engine supports custom block development:

import { BaseBlock, BlockOutput } from "../baseBlock";

export class CustomBlock extends BaseBlock {
  async executeAsync(params?: any): Promise<BlockOutput> {
    // Custom logic here
    return {
      successful: true,
      output: processedData,
      next: this.next,
      continueIfFail: true
    };
  }
}

📋 Block Configuration

Each block can be configured through:

• Input Parameters: Define block behavior
• Connection Settings: Control data flow
• Validation Rules: Ensure data integrity
• Error Handling: Define failure responses

🔧 Best Practices

Design Principles

• Keep blocks focused on single responsibilities
• Use meaningful names and descriptions
• Provide clear input/output documentation
• Handle errors gracefully

Performance Considerations

• Avoid heavy computations in frequently used blocks
• Use caching for expensive operations
• Minimize database queries within blocks
• Consider async operations for I/O tasks

Security Guidelines

• Validate all input parameters
• Sanitize data before processing
• Use parameterized queries for database operations
• Implement proper error handling without exposing sensitive information

📚 Block Reference

For detailed information about each block, see the individual block documentation linked above. Each page includes:

• Block purpose and use cases
• Configuration options
• Input/output specifications
• Example usage
• Error handling
